KENTER SHACKLE

KENTER SHACKLE

Add to Card
Inquiry Now

Product introduction

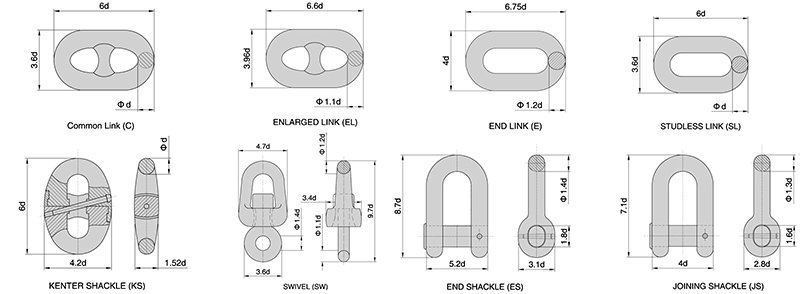

Chain Diameter (mm)	Stud Link Chain kg/27.5m	Common Link kg/	Enlarged Link kg/	End Link kg/	Kenter Shackle kg/	Joining Shackle kg/	End Shackle kg/	Swivel kg/	Anchor Swivel Shackle kg/	Anchor Swivel Shackle kg/
16	150	0.35	0.49	0.57	0.65	0.95	1.52	1.34	---
17.5	197	0.50	0.66	0.67	0.88	1.34	2.05	1.73
19	236	0.66	0.85	1.06	1.13	1.84	2.41	2.17
20.5	268	0.80	1.02	1.06	1.36	2.2	3.25	2.2
22	324	1.04	1.30	1.58	1.64	2.66	3.95	3.5	21	7.6
24	370	1.30	1.65	2.84	2.13	3.4	5.12	4.53		9.9
26	431	1.64	2.03	2.74	2.58	4.5	6.7	5.79	42	12.5
28	496	2.04	2.48	3.23	3.3	5.19	8.1	7.25		15.7
30	563	2.48	3.58	3.74	4.15	6.32	10	9	97	19.4
32	635	2.98	4.45	4.74	5.06	8.24	11.77	10.03		23.4
34	712	3.58	5.21	5.54	6.01	9.56	14.2	12.75		28
36	800	4.45	2.99	6.95	6.89	11.31	16.55	14.96	116	33.4
38	888	5.21	6.15	7.66	8.4	13.45	19.55	17.44		39.4
40	1033	2.98	8.01	8.2	9.63	15.5	22.8	20.25	125	46
42	1084	3.54	9.04	9.92	11	18.1	26	25.4		53
44	1197	4.23	10.25	11.42	12.45	20.25	29.71	26.6		61
46	1310	4.96	11.54	13.92	14.1	23.33	34.3	30.67	156	70
48	1438	6.04	14.44	15.67	16.7	27.5	38.0	35.0		79
50	1546	6.65	16.06	17.7	19.0	31.6	45.2	40.5	284	89
52	1661	7.73	17.85	18.97	20.3	34.0	50.9	49.5		101
54	1791	8.80	19.60	20.84	23.7	38.5	53.8	50.5	294	113
56	1926	10.06	21.69	23.55	26.7	46.0	63.0	55.0		126
58	2086	11.28	24.00	25.95	27.2	46.8	70.0	64.6		140
60	2249	12.68	26.00	28.48	27.7	51.0	77.5	71.3	323	155
62	2361	14.10	28.63	30.81	35	59.2	86.3	77.7		171
64	2516	15.66	31.13	32.7	38.4	62.7	96.3	83.3		188
66	2676	25.98	35.00	38.4	42.3	75	99.6	88.7	458	206
68	2885	28.60	39.72	39.5	46.0	76.7	102.6	100.0		225
70	3010	31.00	43.33	43.8	48.7	90	126.2	107.8	522	246
73	3274	35.20	48.30	49	53.0	95	138.2	125.6		278
76	3548	39.90	53.6	57.1	60.7	107	146	143.8		314
78	3737	43.00	59.9	62.3	65.5	116	164	154	815	340
81	4030	48.60	66.0	67.4	75	130	190	188		380
84	4334	53.50	69.0	74.4	90	136	212	198	1007	424
87	4650	58.90	81.1	84.6	96	160	237	215		472
90	4976	66.35	88.0	91	108	176	245	238		522
92	5199	71.22	97.5	100	114	196	257	252	1300	558
95	5544	78.08	101	109	128	215	300	269		614
97	5780	83.77	107	117	133	222	335	301		654
100	6143	89.03	120	127	146	252	353	330	1610	717
102	6398	95.50	130	134	158	267	378	344		761
105	6773	104.20	139	150	160	294	385	387	1827	830
107	7033	111.63	148	160	180	305	420	428		879
111	7569	124.08	161	171	198	325	463	448		980
114	7983	135.31	168	190	204	345	485	460	2022	1062
117	8409	147.53	177	209	225	365	528	475		1147
120	8863	155.49	204	229	250	400	570	547	2336	1131
122	9143	166.24	218	234	263	425	602	649		1199
124	9399	170.90	228	246	290	465	632	680	2636	1297
127	9830	185.47	244	269	312	499	679	729		1427
130	10300	194.34	264	293	333	536	729	784	2960	1560
132	10620	208.24	270	298	350	561	762	820		1662
