SQUARE HEAD PIN SHACKLE
Product introduction

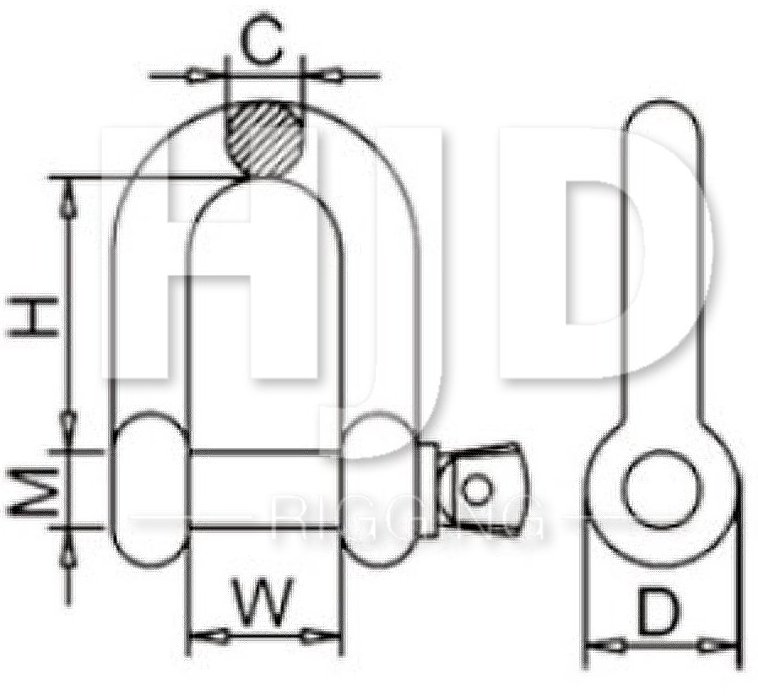

| Size(M) | C | H | W | D | WLL |
| mm | mm | Mm | mm | mm | kg |
| M4 | 4 | 14 | 8 | 8 | 60 |
| M5 | 5 | 17.5 | 10 | 10 | 80 |
| M6 | 6 | )4 | 12 | 12 | 100 |
| M8 | 8 | 28 | 16 | 16 | 200 |
| M10 | 10 | 35 | 20 | 20 | 320 |
| M12 | 12 | 45.5 | 24 | 24 | 520 |
| M14 | 14 | 49 | 28 | 28 | 700 |
| M16 | 16 | 56 | 32 | 32 | 800 |
| M20 | 20 | 70 | 40 | 40 | 1100 |
| M22 | 22 | 77 | 44 | 44 | 1500 |
| M24 | 24 | 84 | 48 | 48 | 2100 |
| M28 | 28 | 98 | 56 | 56 | 3000 |
