US TYPE BOW SHACKLEG2130
Feature:
·Material:Body 45#Carbon Steel,Pin 40Cr Alloy Steel
·Technology:Drop Forged
·Surface Finish:Electro Galvanized,Hot Dip Galvanized,Dacromet,Powder Coated
·UItimate Load:4 times or 6 times of the WILL
·Heat Treatment 6 times
·WLL:1/3-150T
·Usage:Lifing and connecting,Wire rope fitings,chain fittings,Maring hardware fittings
Product parameters

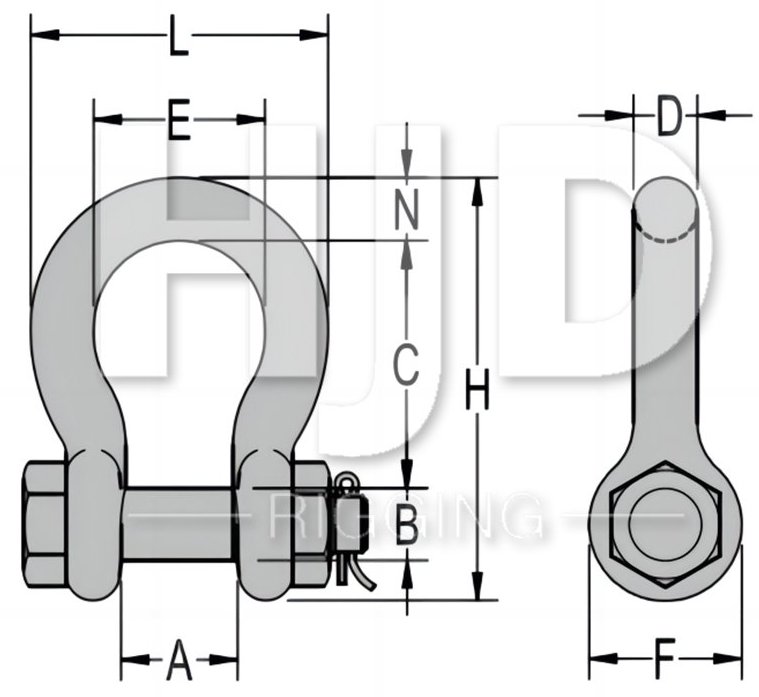

| Chain Size (in.) | Stock No. | Working Load Limit (t)* | Weight Each (Ibs.) | Dimensions (in.) | Tolerance +/- | |||||||||
| A | B | C | D | E | F | H | L | N | C | A | ||||
| 3/16 | 3059316 | 1/3 | 0.06 | 0.38 | 0.25 | 0.88 | 0.19 | 0.60 | 0.56 | 1.47 | 0.98 | 0.19 | 0.6 | 0.06 |
| 1/4 | 3059014 | 1/2 | 0.11 | 0.47 | 0.31 | 1.13 | 0.25 | 0.78 | 0.61 | 1.84 | 1.28 | 0.25 | 0.6 | 0.06 |
| 5/16 | 3059516 | 3/4 | 0.22 | 0.53 | 0.38 | 1.22 | 0.31 | 0.84 | 0.75 | 2.09 | 1.47 | 0.31 | 0.6 | 0.06 |
| 3/8 | 3059038 | 1 | 0.33 | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | 2.49 | 1.78 | 0.38 | 0.13 | 0.06 |
| 7/16 | 3059716 | 1-1/2 | 0.49 | 0.75 | 0.50 | 1.69 | 0.44 | 1.16 | 1.06 | 2.91 | 2.03 | 0.44 | 0.13 | 0.06 |
| 1/2 | 3059012 | 2 | 0.79 | 0.81 | 0.64 | 1.88 | 0.50 | 1.31 | 1.19 | 3.28 | 2.31 | 0.50 | 0.13 | 0.06 |
| 5/8 | 3059058 | 3-1/4 | 1.68 | 1.06 | 0.77 | 2.38 | 0.63 | 1.69 | 1.50 | 4.19 | 2.94 | 0.69 | 0.13 | 0.06 |
| 3/4 | 3059034 | 4-3/4 | 2.72 | 1.25 | 0.89 | 2.81 | 0.75 | 2.00 | 1.81 | 4.97 | 3.50 | 0.81 | 0.25 | 0.06 |
| 7/8 | 3059078 | 6-1/2 | 3.95 | 1.44 | 1.02 | 3.31 | 0.88 | 2.28 | 2.09 | 5.83 | 4.03 | 0.97 | 0.25 | 0.06 |
| 1 | 3059100 | 8-1/2 | 5.66 | 1.69 | 1.15 | 3.75 | 1.00 | 2.69 | 2.38 | 6.56 | 4.69 | 1.06 | 0.25 | 0.06 |
| 1-1/8 | 3059118 | 9-1/2 | 8.27 | 1.81 | 1.25 | 4.25 | 1.13 | 2.91 | 2.69 | 7.47 | 5.16 | 1.25 | 0.25 | 0.06 |
| 1-1/4 | 3059114 | 12 | 11.71 | 2.03 | 1.40 | 4.69 | 1.29 | 3.25 | 3.00 | 8.25 | 5.75 | 1.38 | 0.25 | 0.06 |
| 1-3/8 | 3059138 | 13-1/2 | 15.83 | 2.25 | 1.53 | 5.25 | 1.42 | 3.63 | 3.31 | 9.16 | 6.38 | 1.50 | 0.25 | 0.13 |
| 1-1/2 | 3059112 | 17 | 19.00 | 2.38 | 1.66 | 5.75 | 1.53 | 3.88 | 3.63 | 10.00 | 6.88 | 1.62 | 0.25 | 0.13 |
| 1-3/4 | 3059134 | 25 | 33.91 | 2.88 | 2.04 | 7.00 | 1.84 | 5.00 | 4.19 | 12.34 | 8.80 | 2.25 | 0.25 | 0.13 |
| 2 | 3059200 | 35 | 52.25 | 3.25 | 2.30 | 7.75 | 2.08 | 5.75 | 4.81 | 13.68 | 10.15 | 2.40 | 0.25 | 0.13 |
| 2-1/2 | 3059212 | 55 | 98.25 | 4.13 | 2.80 | 10.50 | 2.71 | 7.25 | 5.69 | 17.90 | 12.75 | 3.13 | 0.25 | 0.25 |
| 3 | 3059300 | 85 | 154.00 | 5.00 | 3.30 | 13.00 | 3.12 | 7.88 | 6.50 | 21.50 | 14.62 | 3.62 | 0.25 | 0.25 |
| 3-1/2 | 3059312 | 120 | 265.00 | 5.25 | 3.76 | 14.63 | 3.62 | 9.00 | 8.00 | 24.88 | 17.02 | 4.38 | 0.25 | 0.25 |
| 4 | 3059400 | 150 | 338.00 | 5.50 | 4.26 | 14.50 | 4.00 | 10.00 | 9.00 | 25.68 | 18.00 | 4.56 | 0.25 | 0.25 |
*Maximum Proof Load is 2.0 times the Working Load Limit.Minimum Ultimate Strengtn is 6 times the Working Load Limit.
